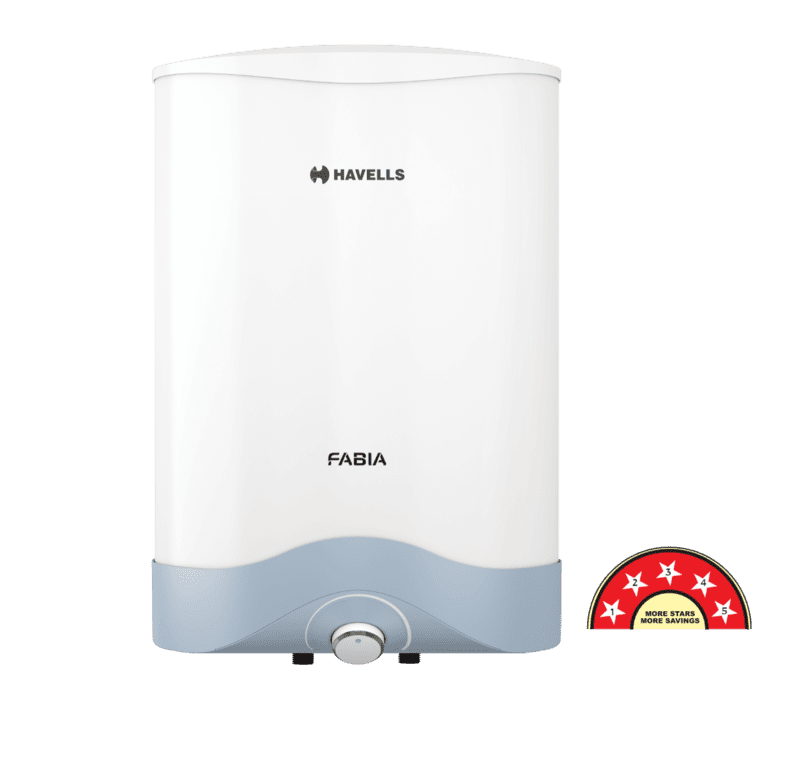

HAVELLS Storage Water Geyser Fabia
- Range: 6 L,10 L, 15 L, 25 L
- Mounting: Vertical
- Star rating as per BEE standard: 5 Star
- Warranty: 7 year warranty on inner container ; 4 year warranty on heating element ; 2 year comprehensive Warranty
- Country of Origin: India
Feroglas Technology
A ) Made of ultra thick superior quality steel plates
B ) Provides superior corrosion resistance & anti-rust property resulting in longer life compared to standard inner container designs
C ) A die-hard life span for inner tank and more than 25% strength than S.S. tank, ensured by multiple on line testing including
- Uric Acid Test
- Anti Alkaline Test
- Fatigue Test
- Environment Synchronization Test
Incoloy Glass Coated Heating Element
Incoloy 800 glass coated heating element offers superior heating performance with its excellent resistance at high temperature setting . Also resists corrosion against extreme and hard water conditions thus extending life span of heating elements with minimum energy loss.
Anode Rod
The tank has an anode rod with a stainless steel core that is designed to protect the tank from corrosive elements
PUF Insulation
CFC free thicker PUF insulation offers complete protection against radiant heat loss.
Adjustable Knob for Temperature Setting
Adjustment knob for setting the temperature conveniently.
0.8 MPa High Working Pressure
Suitable for high-rise buildings and pressure pump applications. The multi-function valve prevents pressure to increase beyond 8 bars.
Whirlflow Technology
It avoids direct contact between cold & hot water flow for a faster heating and Optimized energy saving effecting 20% more hot water output.
Multi Functional Safety Valve
Protects tank from internal and external pressure build-up
Power Cord
Fire retardant power cord.
IPX-4
Ensure high level of protection for electrical parts from water splashing.
| TECHNICAL SPECIFICATIONS | ||
BASIC FEATURES
| ||
| Rated capacity | 6 L,10 L, 15 L, 25 L | |
| Installation | Vertical | |
| Color | White Blue | |
| Ideal for | Bathroom , High rise buildings | |
| Temperature setting | Manual | |
| Whirl flow technology | Yes | |
| Bi Color LED Indicator | Yes | |
| Rated pressure | 0.8 MPa | |
| Standing loss in kWh / 24 h / 45 °C | 0.332 kWh | |
| Mixing factor maximum ( % ) | 30% | |
| Reheating time in minutes to raise | 15 minutes | |
| 50 °C | ||
| External Temperature Indicator | Yes | |
| Rated Power Input | 2000 W | |
| Rated input current | 8.7 Ampere | |
| BEE rating | 5 Star | |
| Energy efficiency feature | Energy saving high density PUF insulation | |
| Rated voltage | 230 V, 1 Phase, 50 Hz AC | |
| Height | 481 mm | |
| Width | 481 mm | |
| Packing dimensions LxWxH (cm) | 41 cm x 40 cm x 62.5 cm | |
| Weight when empty | 8.15 kg | |
| Length | 327 mm | |
| Heating element | Incoloy 800 glass coated heating element offers superior heating performance and resistance to oxidation and carbonation at high temperatures | |
| Tank material | Made of ultra thick super cold rolled steel plates | |
| Tank finish and coating | Feroglas dry powder coating technology | |
| Extreme hard water resistance | Yes | |
| Anode Rod | The tank has an anode rod with a stainless steel core that is designed to protect the tank from corrosive elements | |
WARRANTY \ GUARANTEE
| ||
| Tank Warranty | 7 year | |
| Body and electrical components Warranty | 2 Year | |
| Heating element Warranty | 4 Year | |
SALES PACKAGE (S)
| ||
| Net contents | 1 N storage electric water heater , 1 N user manual , 1 N multi-function safety valve, 2 N fasteners & 2 N flexi pipes | |
| Thermostat | Yes | |
| Thermal cut off | Yes | |
| Multifunctional safety valve | Yes | |
| Water Resistance & Splash Proof (IPX 4) | Ensure high level of protection for electrical parts from water splashing | |
