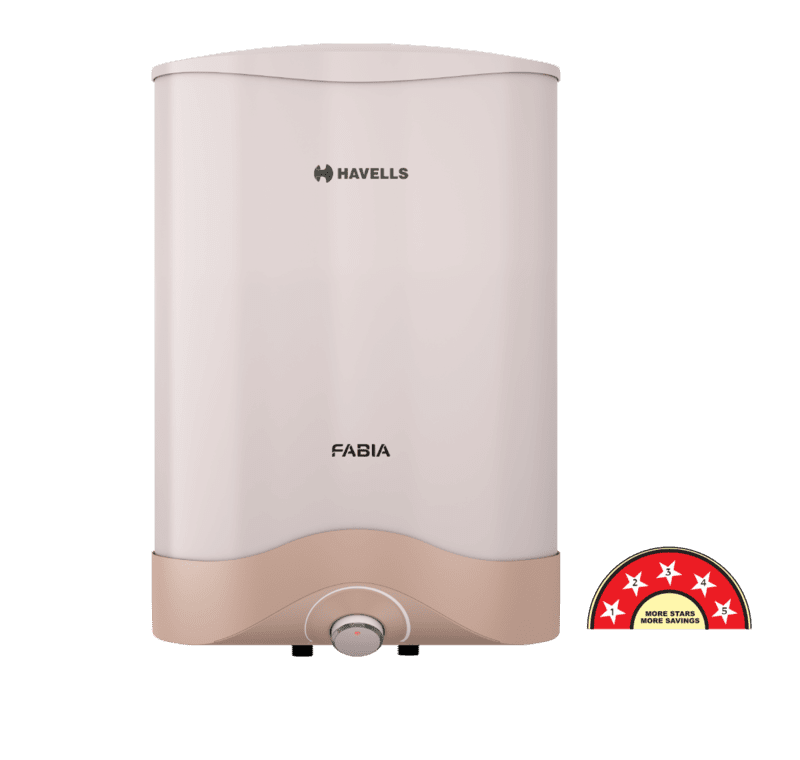

HAVELLS Storage Water Geyser Fabia Brown
- Range: 6 L,10 L, 15 L, 25 L
- Mounting: Vertical
- Star rating as per BEE standard: 5 Star
- Warranty: 7 year warranty on inner container ; 4 year warranty on heating element ; 2 year comprehensive Warranty
- Country of Origin: India
![havells storage water geyser fabia feroglass technology](/products/1549518000023194002/description_images/image.png)
Feroglas Technology
A ) Made of ultra thick superior quality steel plates
B ) Provides superior corrosion resistance & anti-rust property resulting in longer life compared to standard inner container designs
C ) A die-hard life span for inner tank and more than 25% strength than S.S. tank, ensured by multiple on line testing including
- Uric Acid Test
- Anti Alkaline Test
- Fatigue Test
- Environment Synchronization Test
![havells storage water geyser fabia glass coated heating element](/products/1549518000023194002/description_images/image1.png)
Incoloy Glass Coated Heating Element
Incoloy 800 glass coated heating element offers superior heating performance with its excellent resistance at high temperature setting . Also resists corrosion against extreme and hard water conditions thus extending life span of heating elements with minimum energy loss.
![havells storage water geyser fabia anode rod](/products/1549518000023194002/description_images/image2.png)
Anode Rod
The tank has an anode rod with a stainless steel core that is designed to protect the tank from corrosive elements
![havells storage water geyser fabia PUF insulation](/products/1549518000023194002/description_images/image3.png)
PUF Insulation
CFC free thicker PUF insulation offers complete protection against radiant heat loss.
![havells storage water geyser fabia adjustable knob for temperature setting](/products/1549518000023194002/description_images/image4.png)
Adjustable Knob for Temperature Setting
Adjustment knob for setting the temperature conveniently.
![havells storage water geyser fabia high working pressure](/products/1549518000023194002/description_images/image5.png)
0.8 MPa High Working Pressure
Suitable for high-rise buildings and pressure pump applications. The multi-function valve prevents pressure to increase beyond 8 bars.
Whirlflow Technology
It avoids direct contact between cold & hot water flow for a faster heating and Optimized energy saving effecting 20% more hot water output.
Multi Functional Safety Valve
Protects tank from internal and external pressure build-up
Power Cord
Fire retardant power cord.
IPX-4
Ensure high level of protection for electrical parts from water splashing.
TECHNICAL SPECIFICATIONS | ||
BASIC FEATURES | ||
Rated capacity | 6 L,10 L, 15 L, 25 L | |
Installation | Vertical | |
Color | Ivory Brown | |
Ideal for | Bathroom , High rise buildings | |
Temperature setting | Manual | |
Whirl flow technology | Yes | |
Bi Color LED Indicator | Yes | |
Rated pressure | 0.8 MPa | |
Standing loss in kWh / 24 h / 45 °C | 0.332 kWh | |
Mixing factor maximum ( % ) | 30% | |
Reheating time in minutes to raise | 15 minutes | |
50 °C | ||
External Temperature Indicator | Yes | |
Rated Power Input | 2000 W | |
Rated input current | 8.7 Ampere | |
BEE rating | 5 Star | |
Energy efficiency feature | Energy saving high density PUF insulation | |
Rated voltage | 230 V, 1 Phase, 50 Hz AC | |
Height | 481 mm | |
Width | 481 mm | |
Packing dimensions LxWxH (cm) | 41 cm x 40 cm x 62.5 cm | |
Weight when empty | 8.15 kg | |
Length | 327 mm | |
Heating element | Incoloy 800 glass coated heating element offers superior heating performance and resistance to oxidation and carbonation at high temperatures | |
Tank material | Made of ultra thick super cold rolled steel plates | |
Tank finish and coating | Feroglas dry powder coating technology | |
Extreme hard water resistance | Yes | |
Anode Rod | The tank has an anode rod with a stainless steel core that is designed to protect the tank from corrosive elements | |
WARRANTY \ GUARANTEE | ||
Tank Warranty | 7 year | |
Body and electrical components Warranty | 2 Year | |
Heating element Warranty | 4 Year | |
SALES PACKAGE (S) | ||
Net contents | 1 N storage electric water heater , 1 N user manual , 1 N multi-function safety valve, 2 N fasteners & 2 N flexi pipes | |
Thermostat | Yes | |
Thermal cut off | Yes | |
Multifunctional safety valve | Yes | |
Water Resistance & Splash Proof (IPX 4) | Ensure high level of protection for electrical parts from water splashing | |
