Ogeneral ASGA24BMWA 2.1 Ton 3 Star Fixed Speed Split Air Conditioner ASGA24BMWA
- Energy Rating 3 Star
- Capacity: 2.1 Ton
- Inverter Split Type
- Blue Fin Condenser
- Compact Design
- Ambient Operating Range
- 1 year on product and 5 year only compressor warranty
Relish the cool temperature inside your room when you buy O General BMWA 2.1 Ton 3 Star Split AC which provides awesome cooling performance. Having a 2.1 Ton capacity makes this AC an ideal choice for a big-sized room. It is equipped with a 3-star rating which consumes fewer units. It comes with a rated cooling capacity of 7350 Watts along with 834 CFM of airflow volume which gives amazing cooling results. With an Approximate Coverage Area of 240 Sq. Ft, this AC enables perfect cooling. It provides ambient cooling even at a temperature of 50 Degree Celsius. The O General BMWA 2.1 Ton 3 Star Split AC’s price is fair considering its features. It comes with Rotary Compressor which gives giving a long-lasting performance. It comes with Copper Condenser that ensures enhanced performance and longevity. It also has the Smart Diagnosis feature that helps to troubleshoot the issues. It features a Cathin filter that provides you with cool and clean air.
Air Conditioner Category
AIR CONDITIONER TYPE
- Split
AIR CONDITIONER CAPACITY
- 2.1 Ton
APPROXIMATE COVERAGE AREA(SQ.FT)
- 240 Sq. Ft.
APPROXIMATE COVERAGE AREA(SQ.M)
- 22.29 Sq.m
INSTALLATION TYPE
- Wall Mount
Manufacturer Details
BRAND
- O General
MODEL SERIES
- BMWA
MODEL NUMBER
- ASGA24BMWA-B
Air Conditioner Features
AIR CONDITIONER MODES
- Fan, Cool, Dry Mode
AIR FLOW VOLUME
- IDU : 834 (In) CFM
TYPES OF SENSORS
- Built-in Remote Sensor
INVERTER TECHNOLOGY
- No
COOLING CAPACITY
- Rated Capacity - 7350 Watts
AMBIENT TEMPERATURE (COOLING/HEATING) IN DEGREE CELSIUS
- Cooling - 50
RUNNING CURRENT (COOLING/HEATING)INAMPS
- Cooling - 8.5
COOLING POWER INPUT
- Rated Input - 1900 Watts
ADDITIONAL AIR CONDITIONER FEATURES
- Smart Diagnosis, Anti Corrosion Heat Exchanger, High Moisture Removal Rate
Air Conditioner Functions
COMPRESSOR TYPE
- Rotary Compressor
REFRIGERANT TYPE
- R-32
TEMPERATURE SETTINGS
- 30
NOISE LEVEL (INDOOR UNIT)
- 37 dB
NOISE LEVEL (OUTDOOR UNIT)
- 60 dB
AIR CONDITIONER FILTERS
- Cathin Filter
Air Conditioner Physical Attributes
CONNECTING PIPE TYPE
- Copper Pipe
CONNECTING PIPE LENGTH
- 3 m
CONDENSER COIL TYPE
- Copper Condenser
EVAPORATOR COIL TYPE
- Copper Coil Evaporator
LOUVERS SWING TYPE
- Up/Down
OTHER BODY FEATURES
- Compact Design
Energy Standards
ENERGY EFFICIENCY(STAR RATING)
- 3 Star
ENERGY EFFICIENCY RATIO (EER)
- 3.87
INDIAN SEASONAL ENERGY EFFICIENCY RATIO (ISEER)
- 3.87
ENERGY SAVING FUNCTIONS
- Yes
Air Conditioner Plug Details
POWER
- 1900 W
VOLTAGE RATING
- 193-280 V
FREQUENCY
- 50 Hz
PHASE
- Single
MAXIMUM OPERATING TEMPERATURE
- 50 Degree Celsius

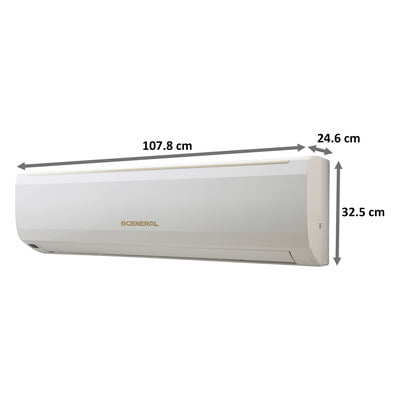

Product Dimensions (Open)
DIMENSIONS IN CM (WXDXH)
- 107.80 x 32.50 x 24.60
DIMENSIONS IN INCHES (WXDXH)
- 42.40 x 12.80 x 9.70
WEIGHT
- 16 kg

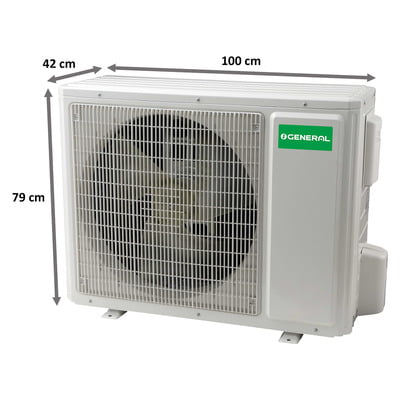

Product Dimensions Outdoor Unit
DIMENSIONS IN CM (WXDXH)
- 100.30 x 79.00 x 42.70
DIMENSIONS IN INCHES (WXDXH)
- 39.40 x 31.10 x 16.80
WEIGHT
- 59 kg
Product Packaged Dimensions
DIMENSIONS IN CM (WXDXH)
- 112.90 x 40.80 x 33.90
DIMENSIONS IN INCHES (WXDXH)
- 44.40 x 16.02 x 13.30
WEIGHT
- 19 kg
Product Packaged Dimensions Outdoor Unit
DIMENSIONS IN CM (WXDXH)
- 108.30 x 85.50 x 48.80
DIMENSIONS IN INCHES (WXDXH)
- 42.70 x 33.60 x 19.20
WEIGHT
- 66.5 kg
- 2.1 Ton Capacity gives superior cooling
- R-32 Refrigerant provides superior cooling
- 3-Star Rating makes it energy-efficient
- 7350 Watts of cooling capacity
- High Moisture Removal Rate makes it more effective
- Rotary Compressor gives long-lasting usage
| Specifications | ||
| BEE Star | Rating | 3 |
| Power Supply | Ph-Hz-V | 1φ-50-230 |
| Tonnage | TR | 2.1 |
| Running Current | A | 8.5 |
| Standard Cooling at 100% Capacity | W | 7350 |
| BTU/h | 25000 | |
| Power Consumption at 100% Capacity | W | 1900 |
| Rated ISEER | kWh/kWh | 3.87 |
| Electricity Consumption per Annum | kWh | 1471 |
| Moisture Removal | l/h | 2 |
| Indoor Fan Speed Control levels | 4 | |
| Indoor Airflow Volume-High | m 3 /h | 1400 |
| Max Indoor Airflow Distance | m | 15 |
| Indoor Unit Dimensions | HxWxD mm | 325x1078x246 |
| Indoor Unit Net Weight | kg | 16 |
| Outdoor Unit Dimensions | HxWxD mm | 790x1003x427 |
| Outdoor Unit Net Weight | kg | 59 |
| Indoor Noise Level-Quiet | dB(A) | 37 |
| Condenser Type | Copper | |
| No. of Condenser Coil Rows | 2 | |
| Compressor Insulation Jacket | Yes/No | Yes |
| Condenser Protection Grill | Yes/No | Yes |
| Corrosion Resistant Body | Yes/No | Yes |
| Pipe Length Min~Max (Precharged) | m | 3~25 (5) |
| Max Height Difference | m | 10 |
| Ambient Operating Temperature Range | °C | 18°C ~ 50°C |
| Operating Voltage Range | V | 193V ~ 253V |
| Precharged Refrigerant | g | 1350 |
| Additional Refrigerant per Metre | g/m | 12 |
| Blue Fin Condenser | Yes/No | Yes |
| Evaporator Coil Protection Coating | Yes/No | Yes |
| Refrigerant Type | Non-CFC | R32 |
| Compressor Type | - | Rotary |
